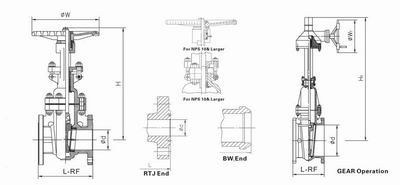

Product Name: JR-GT-01 Gate Valve

   SPECIFICATION/SPECIAL FEATURES

The cast steel gate valves are manufactured according to API, ANSI, ASME standard, for industrial applications. The features of these cast steel gate valves are: outside screw and yoke, bolted bonnet , flexible or solid wedge, rising stem with top sealing (backseat allowing replacement of seats with the valve fully open). Standard materials are A216WCB/F6, other materials and other trims are available. Handwheel operated in standard execution, reducing gear or electric actuator on request.

Design & manufacture: API 600, API 6D, JISB 2073-2083
Face to face: ASME B16.10
Flange ends: ASME B16.5, ASME B16.47A, ASME B16.47B
BW ends: ASME B 16.25
Pressure & temperature: ASME B16.34
Test & inspection: API 598, API 6D, API 600


DN
L mm.
H mm.
W mm.
Weight kg.
150lbs
1/2¡±
108
218
120
4
3/4¡±
117
190
120
5
1¡±
127
256
140
7
1 1/4¡±
140
268
180
10
1 1/2¡±
165
326
200
15
2"
178
340
200
20
2 1/2¡±
191
365
200
23
3"
203
410
250
36
4"
229
485
280
54
6"
267
520
280
62
8"
292
595
300
82
10"
330
755
360
136
12"
356
895
400
196
14"
381
1040
450
299
16"
406
1145
500
381
18"
432
1333
500
536
20"
457
1420
600
608
24¡±
508
1635
700
827
26¡±
559
1862
800
1202
28¡±
610
-
-
1281
30¡±
610
-
-
-
32¡±
711
-
-
-
34¡±
711
-
-
-
36¡±
711
-
-
-
40¡±
812.8
-
-
-
48¡±
1067
-
-
-



Body-bonnet
Cast steel A216WCB, A352 LCB, Alloy steel A217 WC1, WC6, WC9, C5, Stainless steel A351 CF8, CF8M, CF3, CF3M
Stem
A182 F6, A182 F304, F316, Monel
Body seat facing
A182 F6, A182 F304, F316, Monel
Wedge ring facing
A182 F6, A182 F304, F316, Monel
Gasket
SS spring wound W/graphite, PTFE
