PRODUCT >> Valves >> Gate

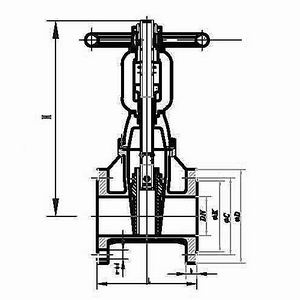

Product Name: JR-GT-15 BS 5163 Resilient Seated Gate Valve Rising Stem

   SPECIFICATION/SPECIAL FEATURES

DN
L mm
D mm
C mm
H mm
50
178
165
125
365
65
190
185
145
442
80
203
200
160
541
100
229
220
180
616
125
254
250
210
710
150
267
285
240
812
200
292
340
295
1012
250
330
395
350
1182
300
356
445
400
1383



Available Standard
BS 5163
Working Pressure
1.0MPa
Test Pressure
Body
1.5MPa
Seat
1.1MPa



Body-bonnet
Cast Iron, Ductile Iron
Disc
NBR or EPDM coated Cast Iron, Ductile Iron
Stem
Stainless Steel or Copper Alloy
