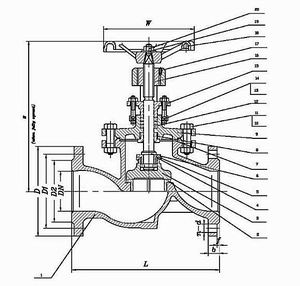

Product Name: JR-GL-06 Cast Iron Globe Valve DIN 3202 F1

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

These cast iron on-off globe valves are provided with a stem packing which may require maintenance. For diameters higher than DN 150, we provide the globe valve with balance disc, to facilitate the opening; in this case the valve has to be mounted in the opposite direction, with pressure over the shutter. Handwheel operated. These globe valves can be applied for water, steam, not aggressive fluids, temperature and working pressure according to DIN 2401 part 2.
Flanges: UNI EN 1092-1 PN 16
Design: EN 1074
Face to face length: EN 558-1 serie 1
Installation: horizontal / vertical, with the flow following the direction of the arrow. When working pressure exceeds below indicated limits, valves must be installed in opposite direction, with pressure over the shutter, and balance disc type compulsory.


DN
L mm
H mm
W mm
Weight kg
20
150
132
65
-
25
160
142
80
-
32
180
172
100
-
40
200
198
120
-
65
290
303
200
-
80
300
333
220
-
100
350
375
240
-
125
400
432
300
-
150
480
482
320
-
200
600
555
400
-



Body & Bonnet
Cast Iron
Stem
Stainless Steel
Disc
Stainless Steel
Seat Ring
Stainless Steel
Gasket
Expansion Graphite



Working Pressure
1.6MPa
Test Pressure
Body
2.4MPa
Seat
1.76MPa
Reseat Pressure
1.6~0.35MPa
